LCD Screen Type Multi Gas Sensor NH3 O2 O3 H2S SO2 LEL H2 CH4 Gas Detector
The single gas detector used for measuring gas concentration and temperature,widely used in factory,workshop,green house,clean room,industry and agriculture,wine bar,hotel,hospital,shop market,airport,railway station,entertainment hall and movie theater etc

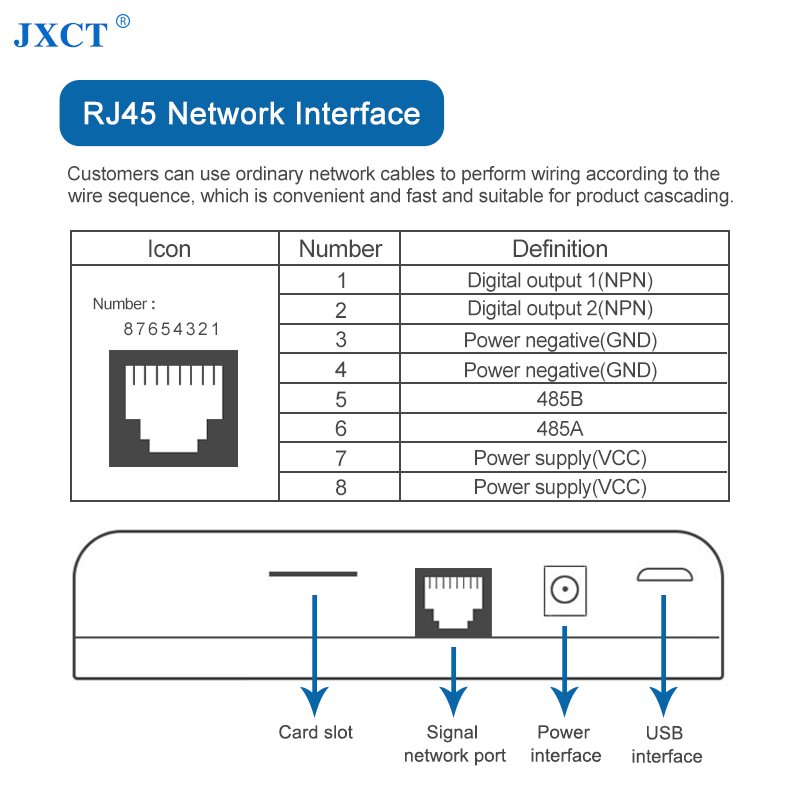

Support RS485/ Analog/ Thernet / Wifi/ GPRS/ 4G/ Lora

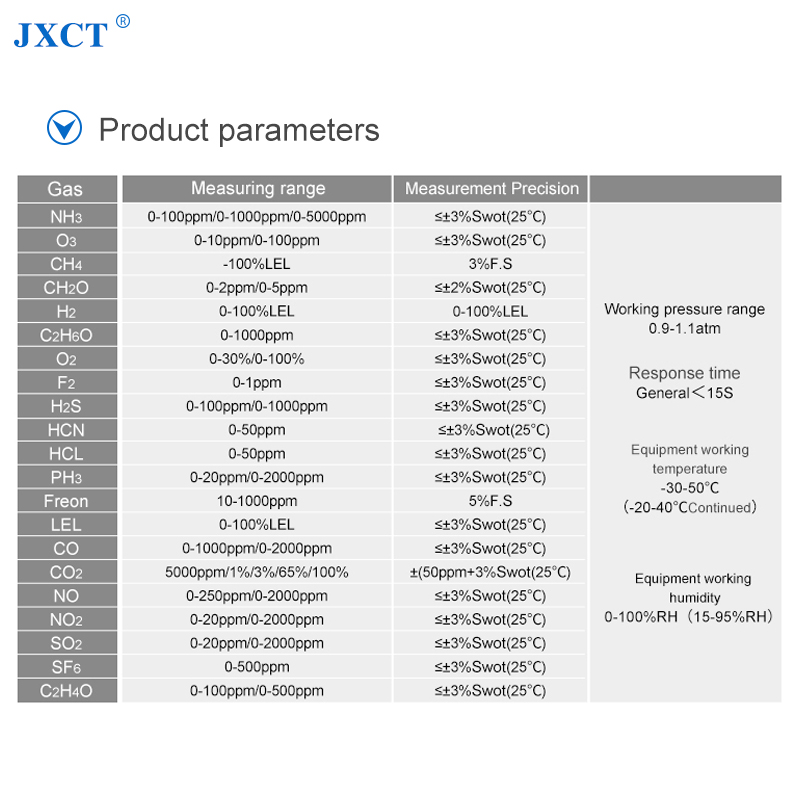

| Gas Detector Parameter | |||
| Gas | Range | Precision | Working pressure range: 0.9-1.1atm
Response time: <15s
Working temperature:-30~50℃
Working Humidity: 0-100%RH(15~95%RH) |
| NH3 | 0-100ppm/0-1000ppm/0-5000ppm | ≤±3%Swot(25℃ ) | |
| O3 | 0-10ppm/10-100ppm | ≤±3%Swot(25℃ ) | |
| CH4 | 0-100%LEL | 3%F.s | |
| CH2O | 0-2ppm/0-5ppm | ≤±3%Swot(25℃ ) | |
| H2 | 0-100%LEL | 5%F.s | |
| C2H6O | 0-1000ppm | ≤±3%Swot(25℃ ) | |
| O2 | 0-30%/0-100% | ≤±3%Swot(25℃ ) | |
| F2 | 0-1ppm | ≤±3%Swot(25℃ ) | |
| H2S | 0-100ppm/0-1000ppm | ≤±3%Swot(25℃ ) | |
| HCN | 0-50ppm | ≤±3%Swot(25℃ ) | |
| HCL | 0-50ppm | ≤±3%Swot(25℃ ) | |
| PH3 | 0-20ppm/0-2000ppm | ≤±3%Swot(25℃ ) | |
| Freon | 10-1000ppm | 5%F.s | |
| CO | 0-1000ppm/0-2000ppm | ≤±3%Swot(25℃ ) | |
| CO2 | 5000ppm/1%/3%/65%/100% | ±(50ppm+ 3%Swot(25℃ ) | |
| NO | 0-250ppm/0-2000ppm | ≤±3%Swot(25℃ ) | |
| NO2 | 0-20ppm/0-2000ppm | ≤±3%Swot(25℃ ) | |
| SO2 | 0-20ppm/0-2000ppm | ≤±3%Swot(25℃ ) | |
| SF6 | 0-500ppm | ≤±3%Swot(25℃ ) | |
| C2H4O | 0-100ppm/0-500ppm | ≤±3%Swot(25℃ ) | |
