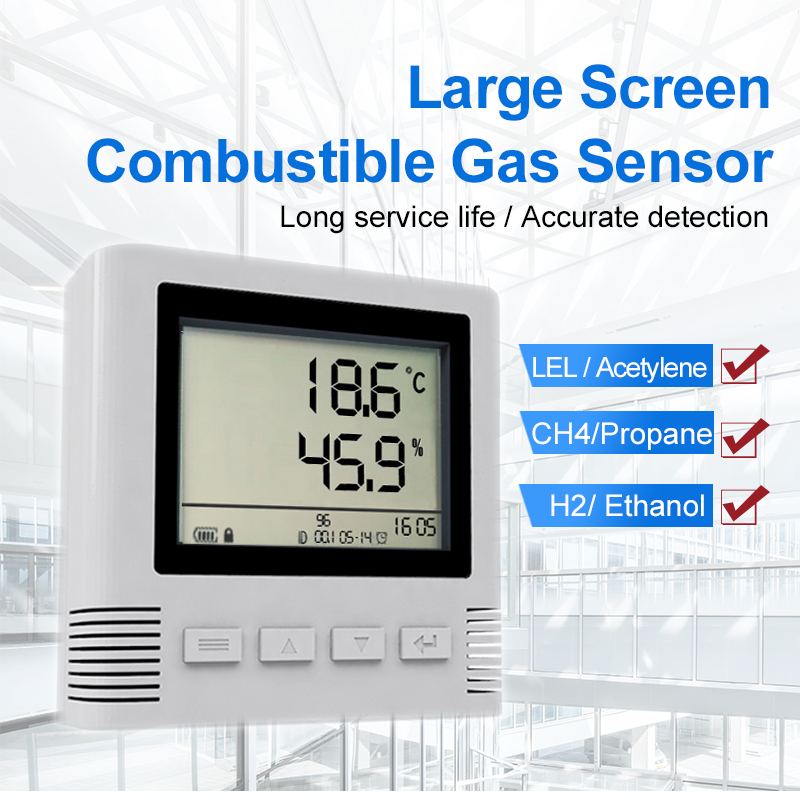

LCD Screen Type Combustible Gas Sensor Industrial Flammable Gas Detector
The Combustible gas detector used for measuring Combustible gas concentration and temperature,widely used in factory,workshop,green house,clean room,industry and agriculture,wine bar,hotel,hospital,shop market,airport,railway station,entertainment hall and movie theater etc

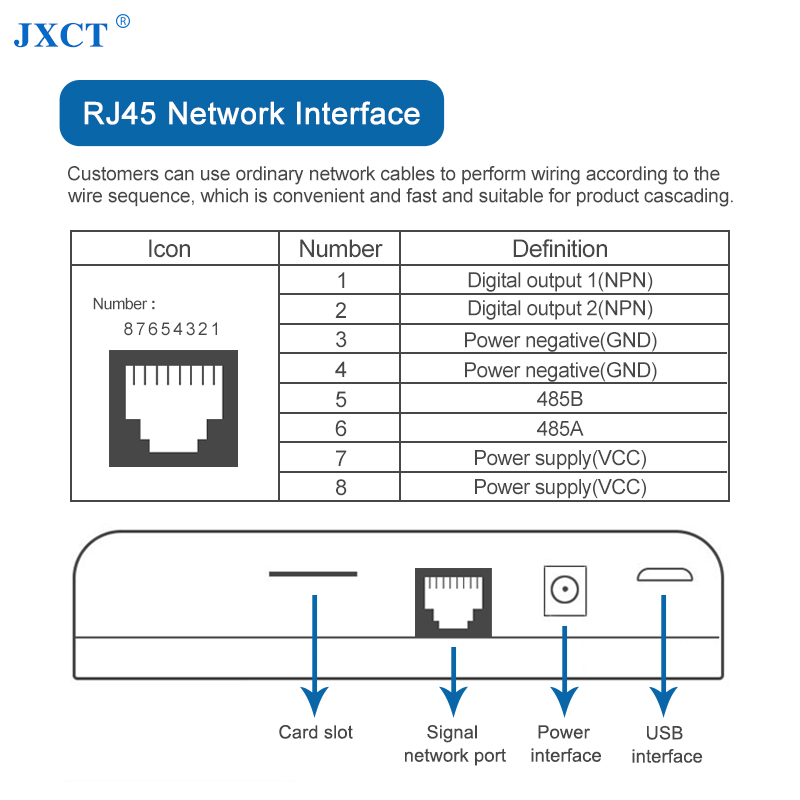

Support RS485/ Analog/ Thernet / Wifi/ GPRS/ 4G/ Lora
Detecting Gas: Combustible gas such as CH4, H2, Ethanol.

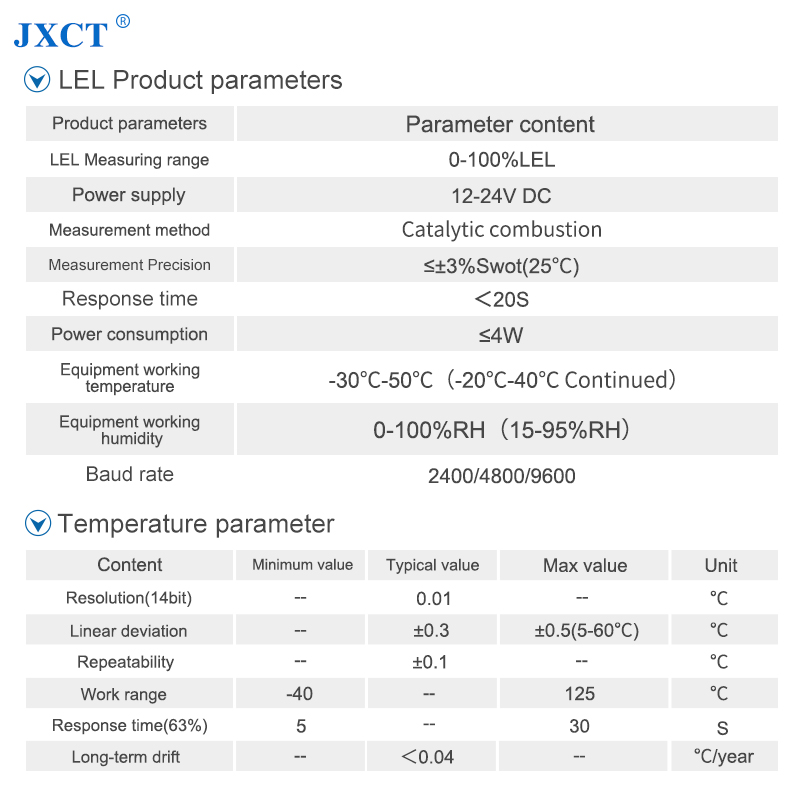

| Combustible Gas Detector Parameter | |
| Range | 0-100%LEL |
| Measurement method | Catalytic combustion |
| Precision | ≤±3%Swot(25℃ ) |
| Pressure range | 0.9-1.1atm |
| Response time | ＜20S |
| Baud rate | 2400/4800/9600 |
| Power supply | 12-24V DC |
| Power consumption | ≤4w |
| Operating temperature | -30℃~50℃ |
| Working humidity | 0-100%RH |
| Temperature Parameter | ||||
| Content | Minimum value | Typical value | Max value | Unit |
| Resolution | - | 0.01 | - | ℃ |
| Linear deciation | - | ±0.3 | ±0.5(5-60℃) | ℃ |
| Repeatability | - | ±0.1 | - | ℃ |
| Work range | -40 | - | 125 | ℃ |
| Response time(63%) | 5 | - | 30 | S |
| Lont-term drift | - | ＜0.04 | - | ℃/Year |
