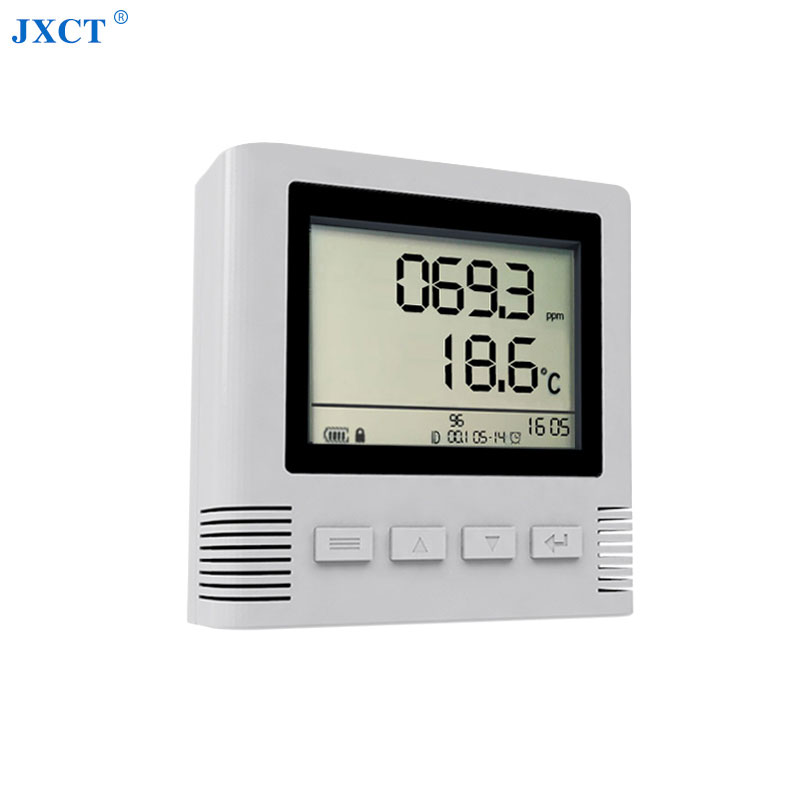

LCD Screen Type NO/ NO2 Nitrogen Dioxide/ Nitric Oxide Detector Industiral Gas Sensor
The Nitrogen Dioxide/ Nitric Oxide gas detector used for measuring NO/ NO2 gas concentration and temperature,widely used in factory,workshop,green house,clean room,industry and agriculture,wine bar,hotel,hospital,shop market,airport,railway station,entertainment hall and movie theater etc

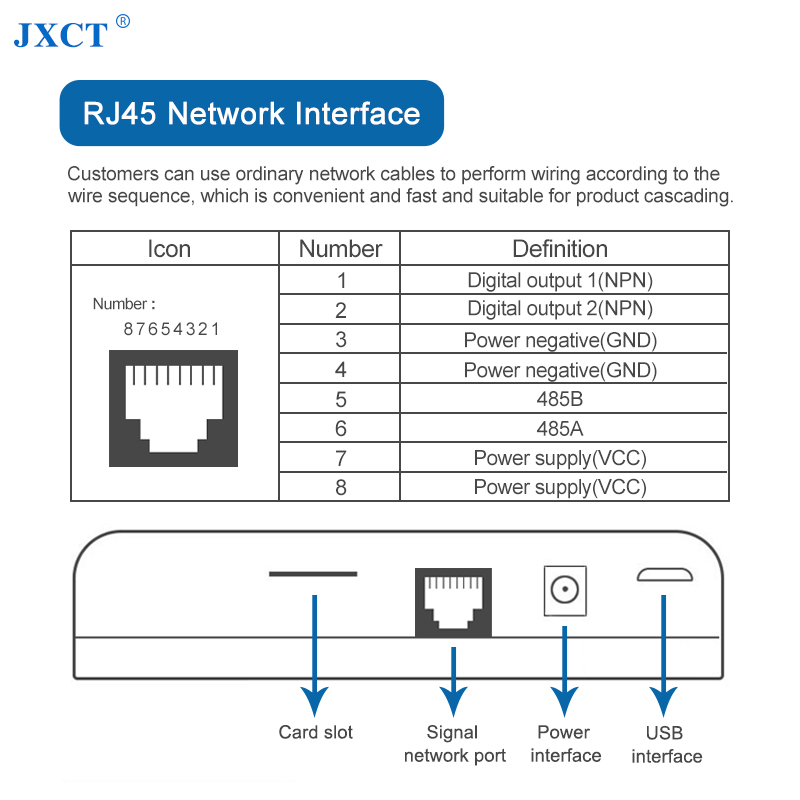

Support RS485/ Analog/ Thernet / Wifi/ GPRS/ 4G/ Lora

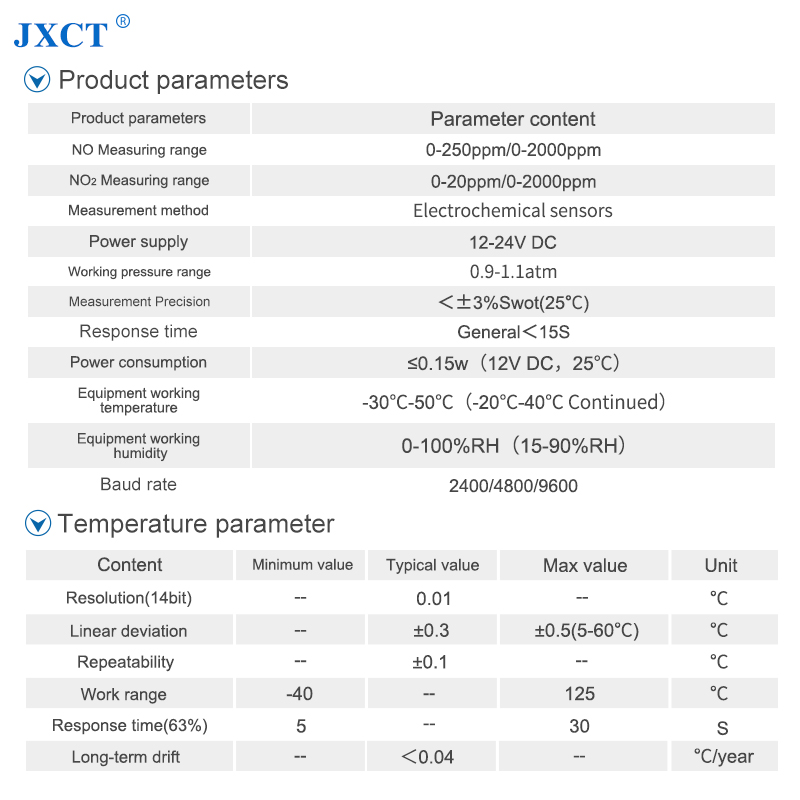

| NO/ NO2 Gas Detector Parameter | |
| NO measurement Range | 0-250ppm/0-2000ppm |
| NO2 measurement Range | 0-20ppm/0-2000ppm |
| Measurement method | Electrochemical probe |
| Precision | ≤±3%Swot(25℃ ) |
| Pressure range | 0.9-1.1atm |
| Response time | ＜15s |
| Baud rate | 2400/4800/9600 |
| Power supply | 12-24V DC |
| Power consumption | ≤0.15w |
| Operating temperature | -30℃~50℃ |
| Working humidity | 0-100%RH |
| Temperature Parameter | ||||
| Content | Minimum value | Typical value | Max value | Unit |
| Resolution | - | 0.01 | - | ℃ |
| Linear deciation | - | ±0.3 | ±0.5(5-60℃) | ℃ |
| Repeatability | - | ±0.1 | - | ℃ |
| Work range | -40 | - | 125 | ℃ |
| Response time(63%) | 5 | - | 30 | S |
| Lont-term drift | - | ＜0.04 | - | ℃/Year |
