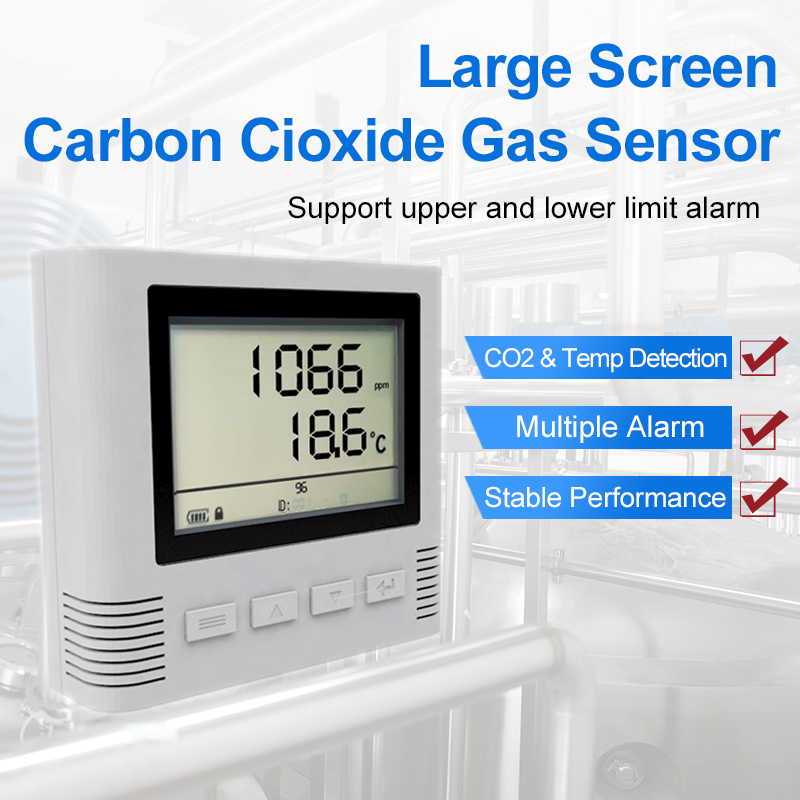

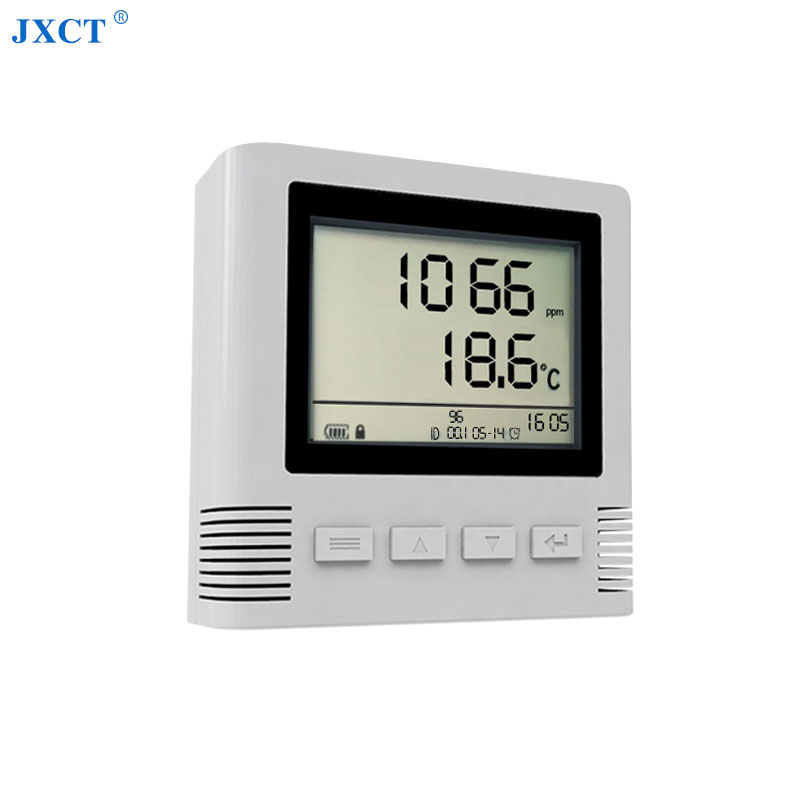

LCD Screen Type CO2 Gas Sensor Carbon Dioxide Monitor with Alarm
The CO2 Ammonia gas detector used for measuring CO2 gas concentration and temperature,widely used in factory,workshop,green house,clean room,industry and agriculture,wine bar,hotel,hospital,shop market,airport,railway station,entertainment hall and movie theater etc
Support RS485/ Analog/ Thernet / Wifi/ GPRS/ 4G/ Lora

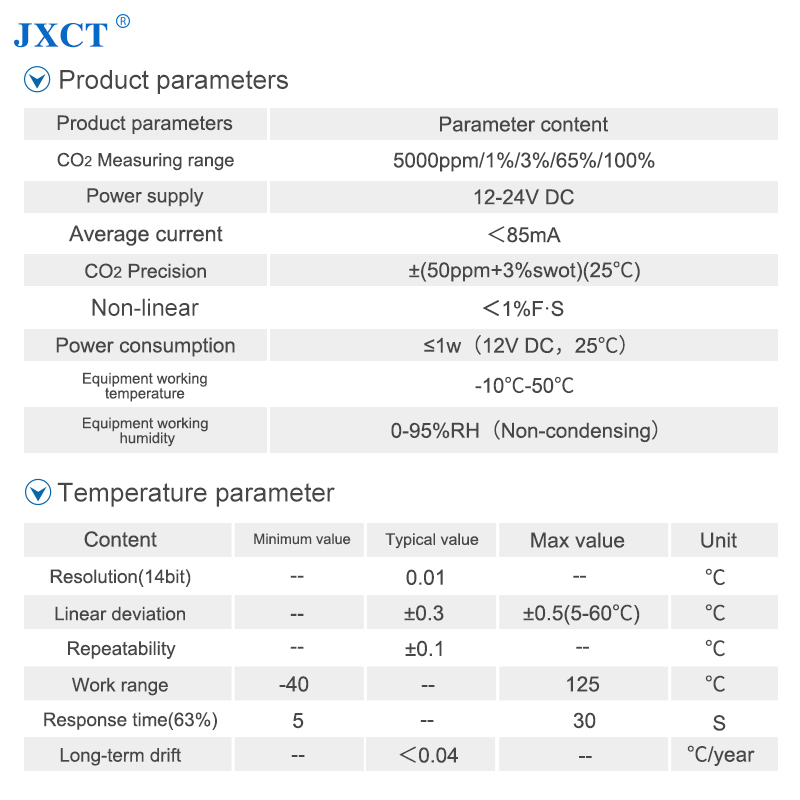

| CO2 Gas Detector Parameter | |
| Range | 0-5000PPM/1%/3%/5%/65%/100% |
| Precision | ±(50PPM+3%Swot)(25℃ ) |
| Power supply | 12-24V DC |
| Avearage Current | ＜85mA |
| Baud rate | 2400/4800/9600 |
| Non-linear | ＜1%F.s |
| Power consumption | ≤1w |
| Operating temperature | -10℃~50℃ |
| Working humidity | 0-95%RH |
| Temperature Parameter | ||||
| Content | Minimum value | Typical value | Max value | Unit |
| Resolution | - | 0.01 | - | ℃ |
| Linear deciation | - | ±0.3 | ±0.5(5-60℃) | ℃ |
| Repeatability | - | ±0.1 | - | ℃ |
| Work range | -40 | - | 125 | ℃ |
| Response time(63%) | 5 | - | 30 | S |
| Lont-term drift | - | ＜0.04 | - | ℃/Year |
