Detail

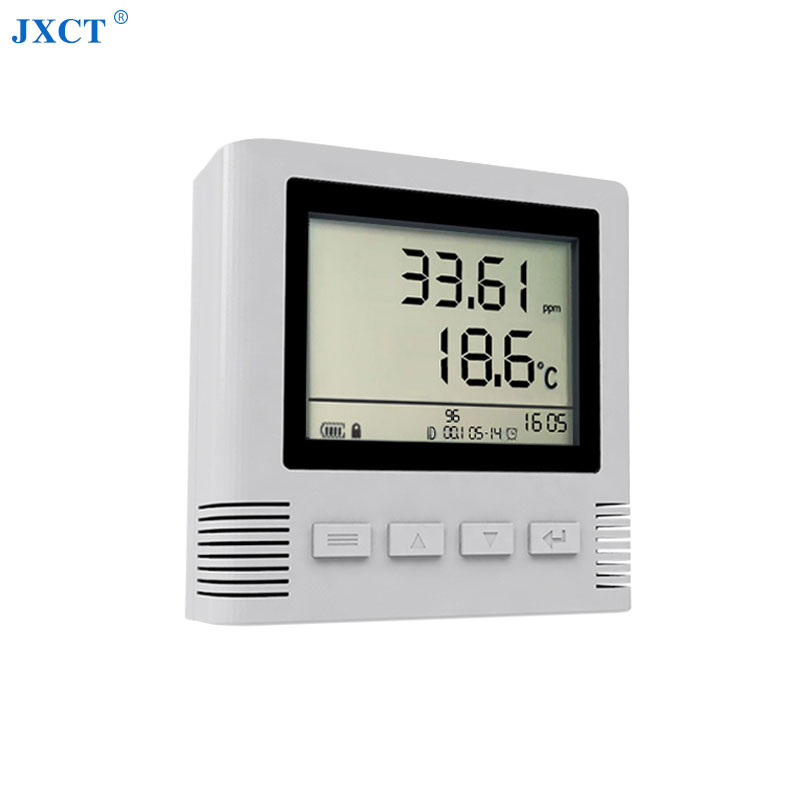

LCD Screen Type O3 Gas Sensor Air Quality Ozone Gas Detector
The O3 ozone gas detector used for measuring o3 gas concentration and temperature,widely used in factory,workshop,green house,clean room,industry and agriculture,wine bar,hotel,hospital,shop market,airport,railway station,entertainment hall and movie theater etc

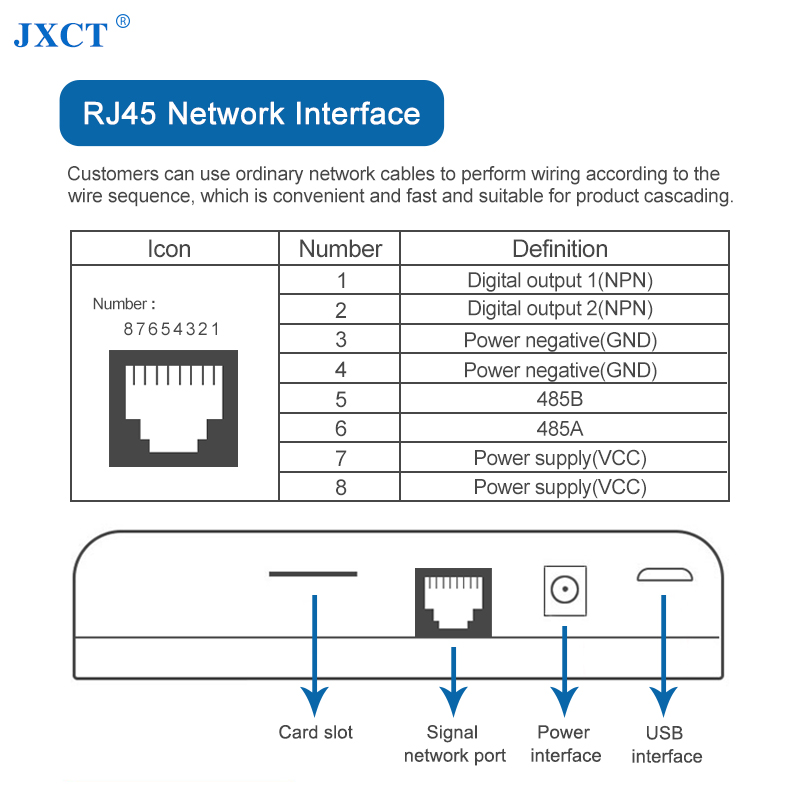

Support RS485/ Analog/ Thernet / Wifi/ GPRS/ 4G/ Lora
| O3 Gas Detector Parameter | |
| Range | 0-10PPM/0-100PPM |
| Measurement method | Electrochemical probe |
| Precision | ≤±3%Swot(25℃ ) |
| Pressure range | 0.9-1.1atm |
| Response time | ＜15s |
| Baud rate | 2400/4800/9600 |
| Power supply | 12-24V DC |
| Power consumption | ≤0.15w |
| Operating temperature | -30℃~50℃ |
| Working humidity | 0-100%RH(15-95%RH) |
| Temperature Parameter | ||||
| Content | Minimum value | Typical value | Max value | Unit |
| Resolution | - | 0.01 | - | ℃ |
| Linear deciation | - | ±0.3 | ±0.5(5-60℃) | ℃ |
| Repeatability | - | ±0.1 | - | ℃ |
| Work range | -40 | - | 125 | ℃ |
| Response time(63%) | 5 | - | 30 | S |
| Lont-term drift | - | ＜0.04 | - | ℃/Year |
