Detail

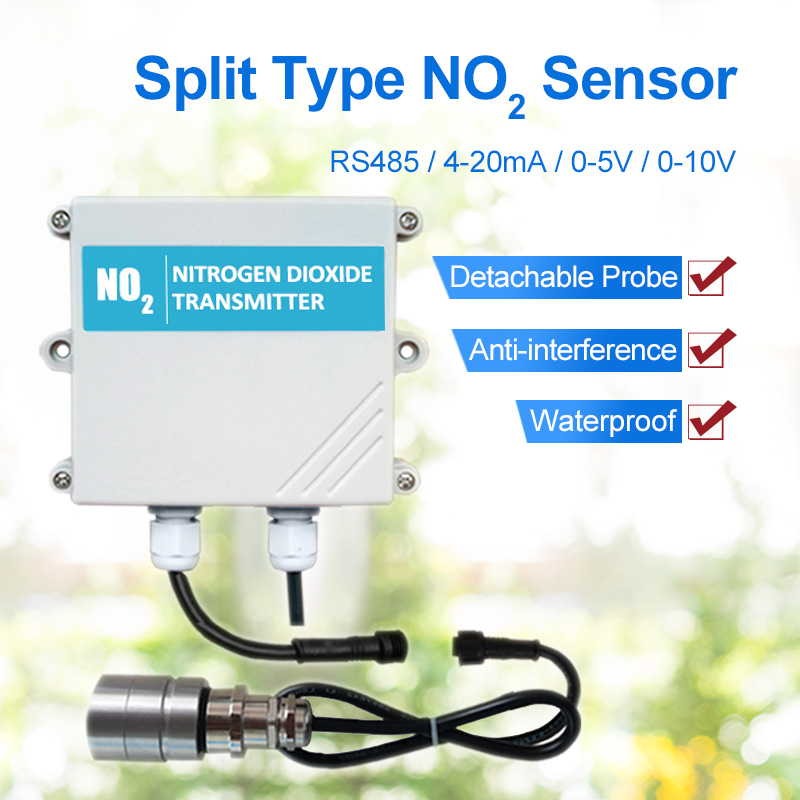

Split Type NO2 Gas Sensor RS485 4-20ma Nitrogen Dioxide Detector
There are two types of nitrogen dioxide gas detector: single nitrogen dioxide gas detector, nitrogen dioxide, temperature and humidity 3 in 1 detector.
The split type fixed nitrogen dioxide gas detector can be widely used in factories, offices, warehouses, mines, and other online site environmental monitoring.
Feature:

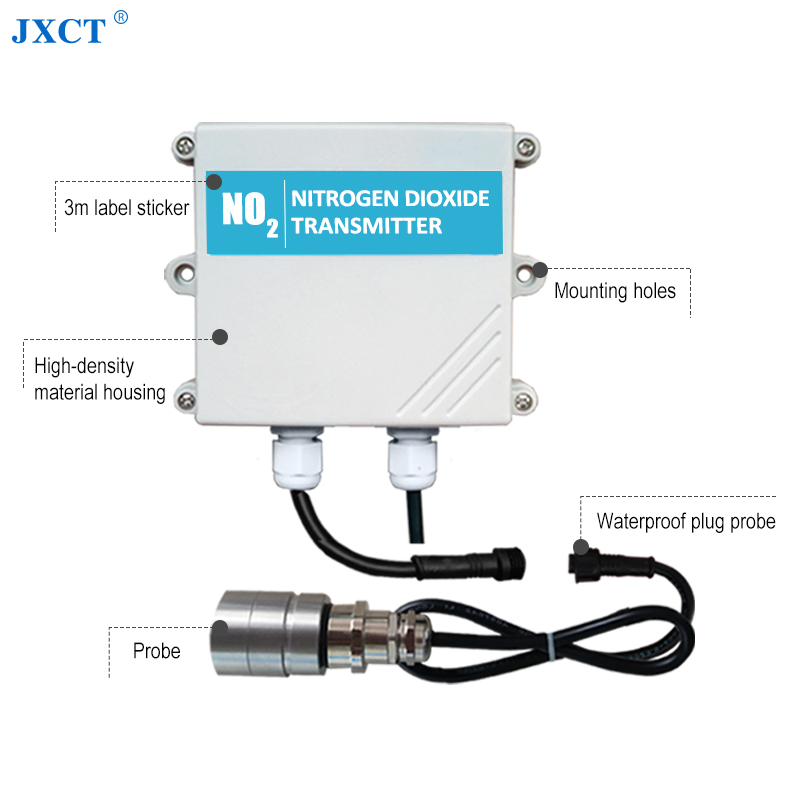

High-density material shell, wall mounting, easy installation
Detachable probe to easily pass through a small hole with a diameter of 0.6cm

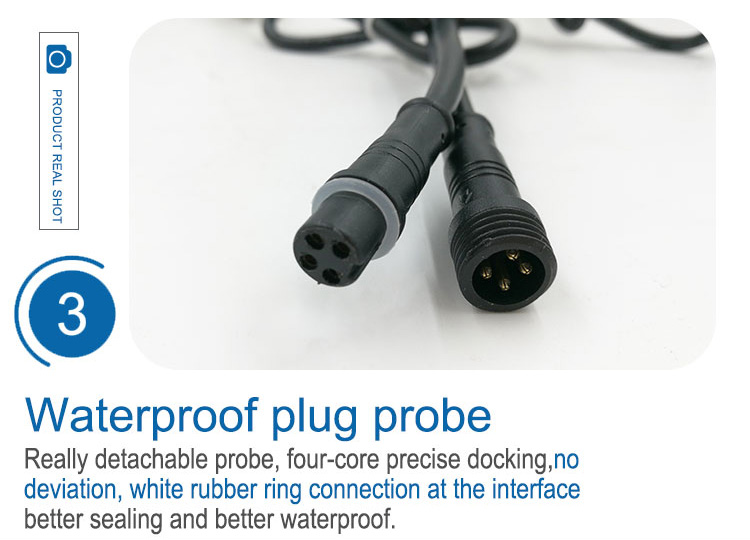

External waterproof probe

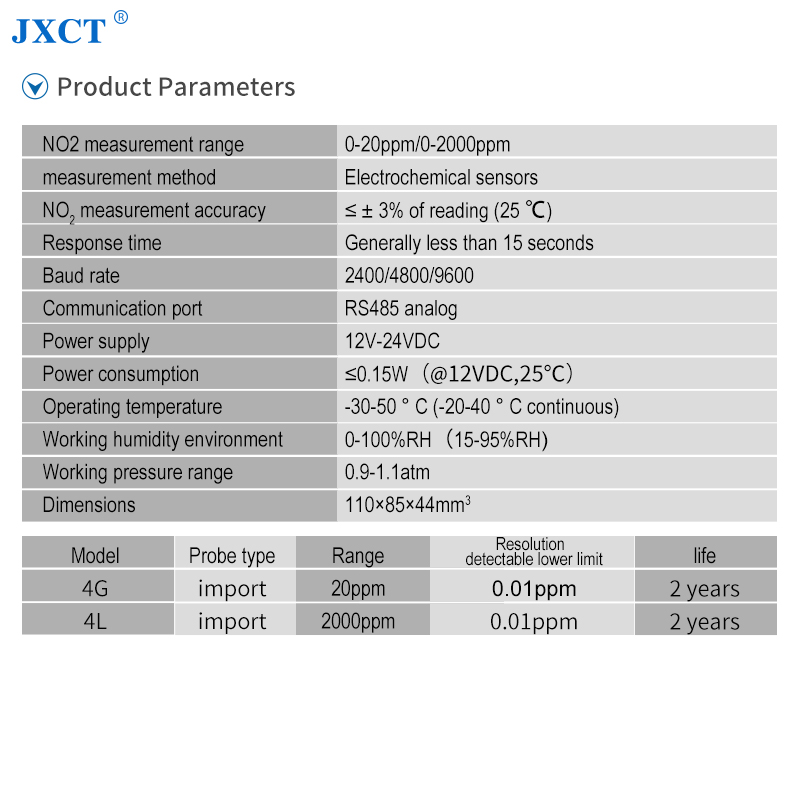

| Nitrogen Dioxide Sensor Parameter | |
| Range | 0-20ppm/0-2000ppm |
Accuracy | ≤±3% of reading (25℃) |
| Response time | ≤15s |
| Baud rate | 2400/4800/9600 |
| Communication port | RS485/ Analog |
| Power supply | 12-24V DC |
| Working environment | -30~50℃(-20~40℃ continued) 15~90%RH |
| Size | 110*85*44mm |
