Detail

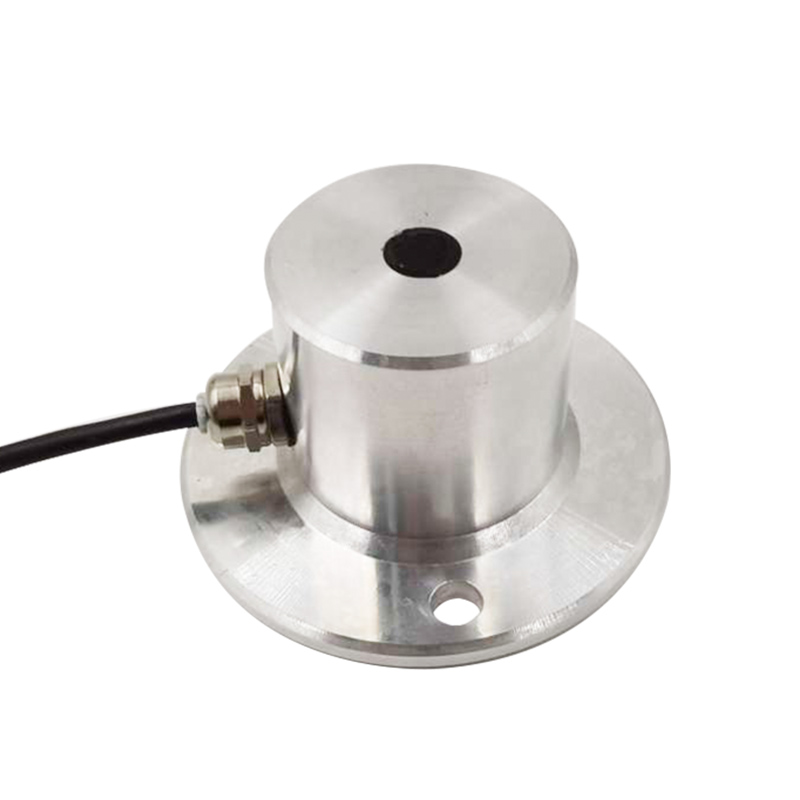

UV Sensor Ultraviolet Rays Illuminometer
The ultraviolet radiation sensor adopts a photoelectric detector to receive the electric signal of ultraviolet light wave. The product used to measure the solar ultraviolet radiation (UVA β wavelength range) in the atmosphere is used in conjunction with a data acquisition instrument to provide the public's concern about UV index, UV erythema measurement, UV impact on the human body and UV special biological and Chemical effects are widely used in research on erythema doses caused by sun exposure, comprehensive environmental and ecological effects, climate change, and ultraviolet monitoring and forecasting.
| UV Sensor Parameters | |
| Output singal | RS485/Analog/4G/NB-IoT/Lora |
Measure Range | 0-150W/m2 |
| Accuracy | ±3%(25℃) |
| Temperature range | -40~80℃ |
| Humidity Range | 0-100%RH |
| Working pressure range | 0.9-1.1atm |
| Power consumption | ≤0.15W |
| Power supply | 12-24V DC |
