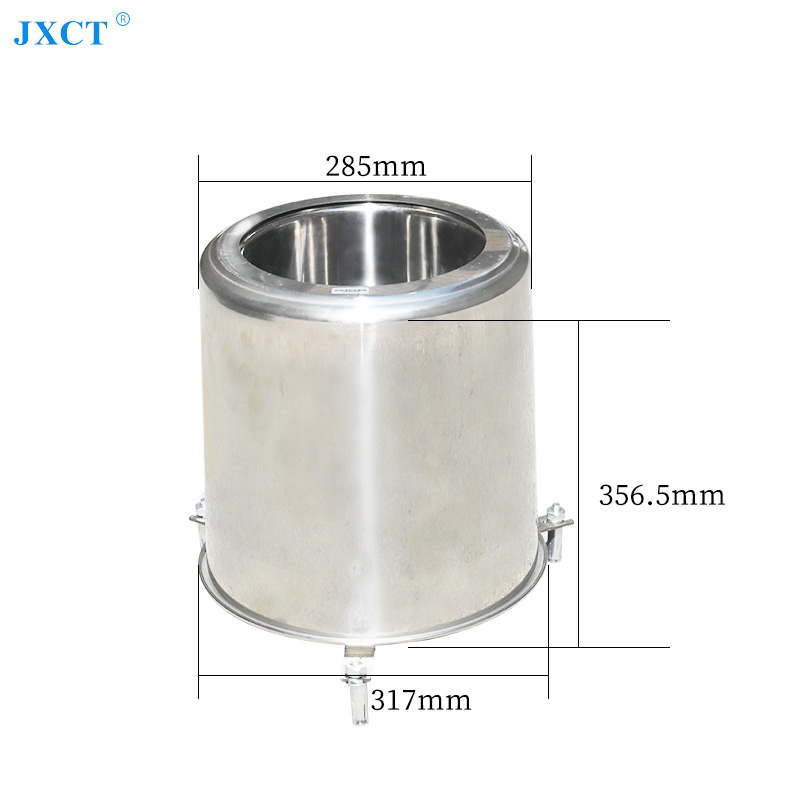

Evaporation Sensor Double Layer Stainless Steel Liquid Surface Evaporation Sensor
The evaporation sensor is an instrument used to observe water surface evaporation. It has the advantages of high accuracy, high sensitivity, and wide range. It can quickly and accurately measure the evaporation of water per unit area.
| Evaporation Sensor Parameters | |
| Parameter | Range |
Power Supply | 12-24V DC |
| Output Signal | RS485 Modbus |
| Range | 0-200mm |
| Accuracy | 1%F.s |
| Resolution | ≤0.01mm |
| Response time | ≤1s |
| Working Environment | 0-85℃ 0-100%RH |
| Maximun weighting | 3500g |
| Power consumption | ≤0.15W |
