Detail

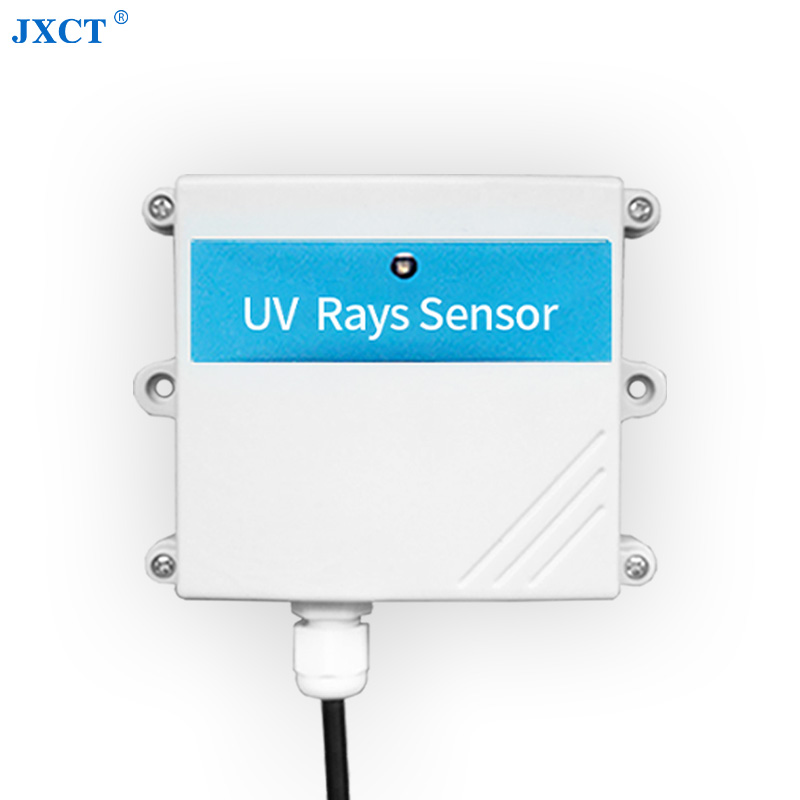

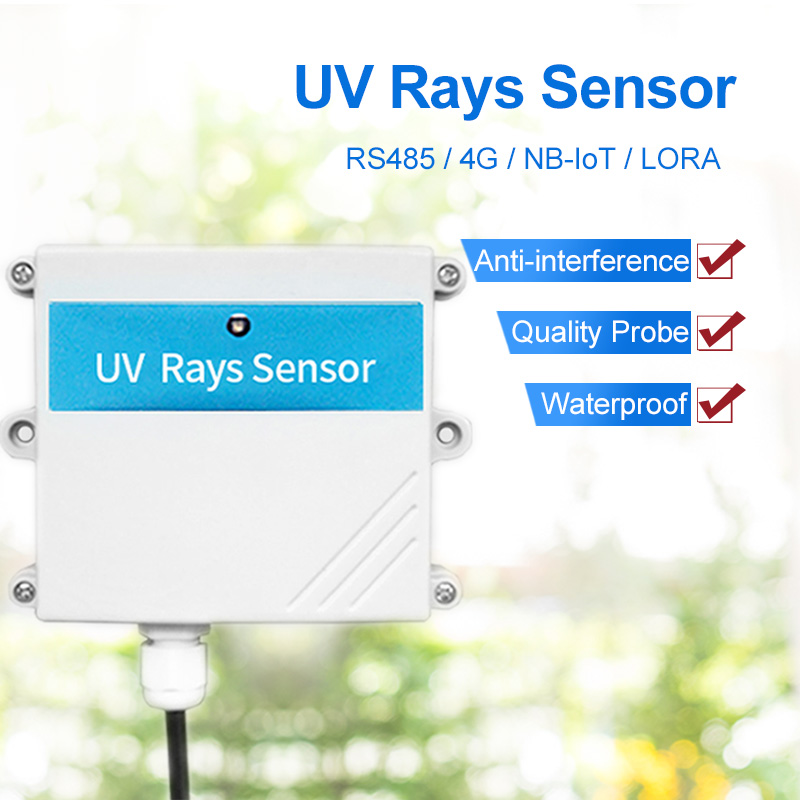

UV Rays Sensor Ultraviolet Intensity Transmitter
The UV sensor is based on the principle that photosensitive elements convert ultraviolet light into measurable electrical signals, enabling on-line monitoring of ultraviolet light.The outer casing of the product is a wall-mounted high-protection enclosure with IP65 protection against rain and snow.
The UV sensor is widely used in environmental monitoring, meteorological monitoring, agriculture, forestry and other environments. Measure ultraviolet light in the atmosphere and in artificial light sources.

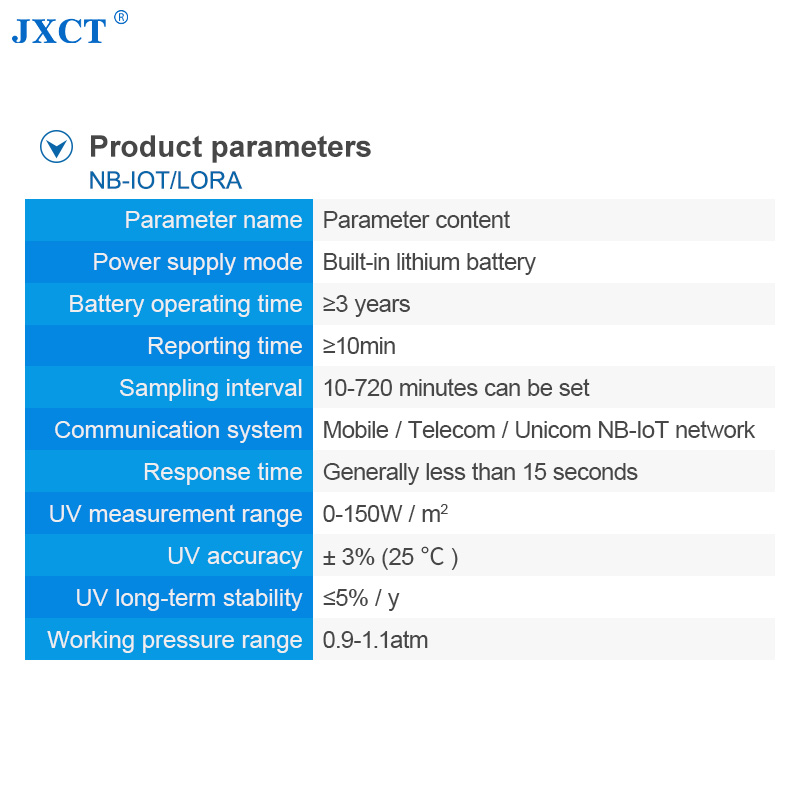

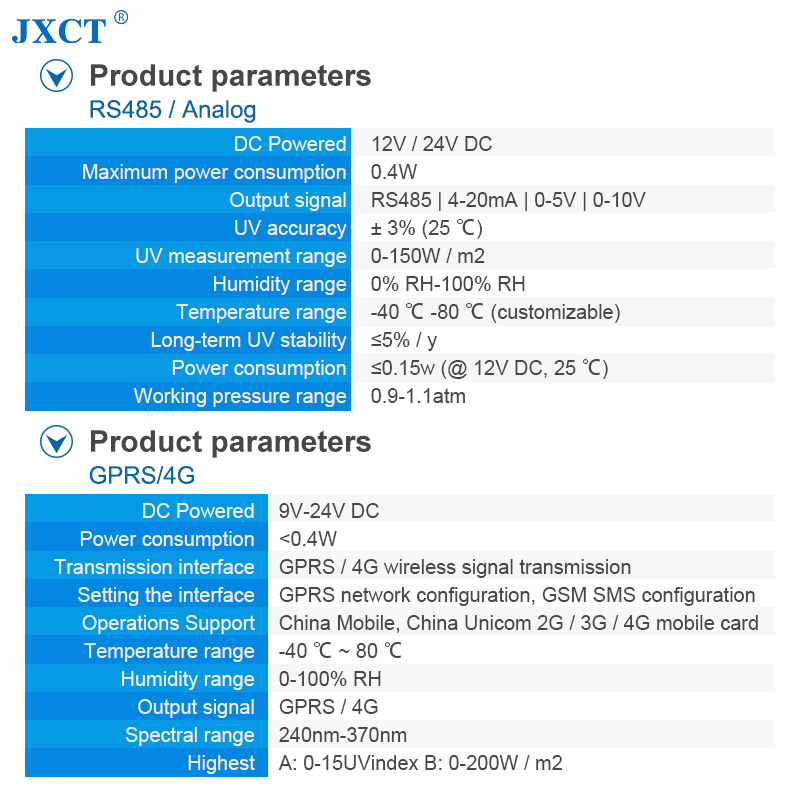

| UV sensor parameter | |
| Power supply | 9-24V DC |
| Power | ≤0.4W |
| Range | 0-150W/m2 |
| Accuracy | ±3%(25℃) |
| Spectral range | 240-370nm |
| Output singal | RS485/4-20mA/0-5V/0-10V |
| Working environment | -40℃~80℃ 0~100%RH |
| UV long term stability | ≤5%/y |
| Working pressure | 0.9-1.1atm |
