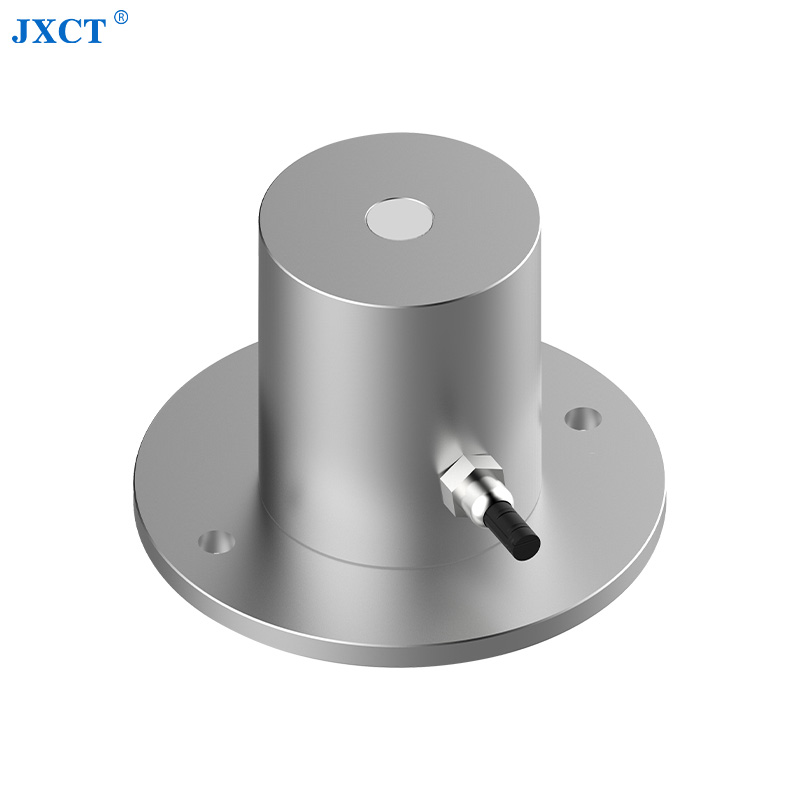

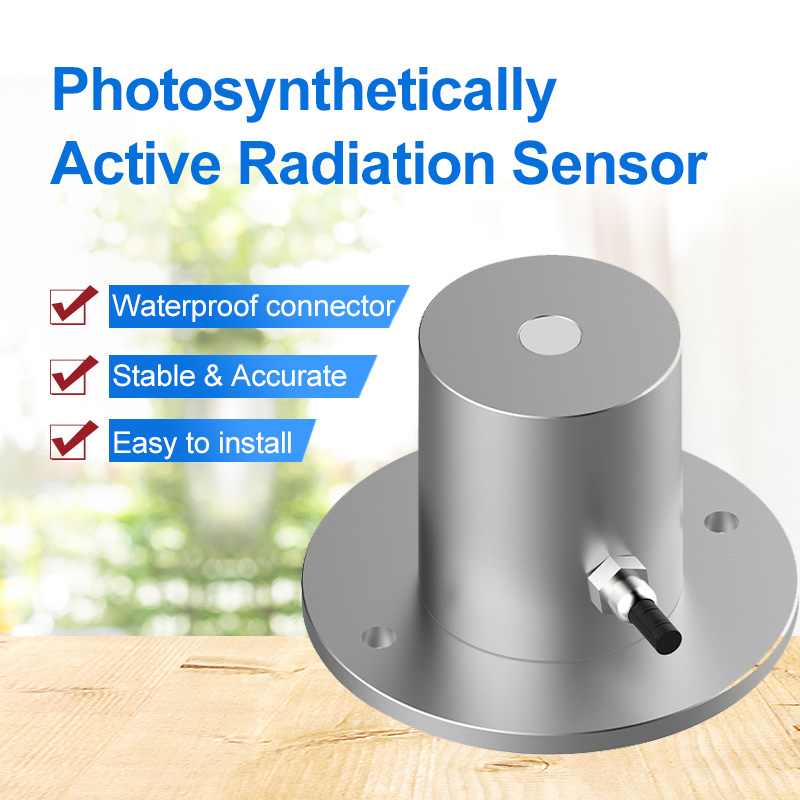

PAR Sensor Photosynthetically Active Radiation Sensor
Photosynthetically Active Radiation ( PAR )Sensor is mainly used for measuring solar radiation within 400~700nm wavelength. It is easy installation and can work continuously in all weathers. Wildly used in agricultural meteorology, crop growth research and other fileds.

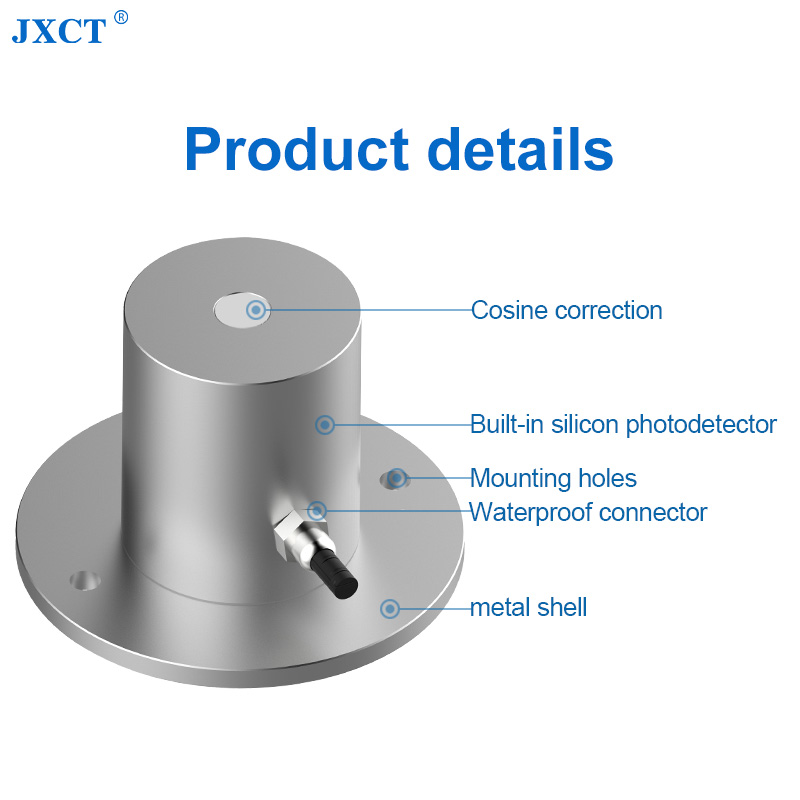

Features:
Metal construction
Harsh environment workable
High sensitivity
No power supply measurement
Compact size for easy use

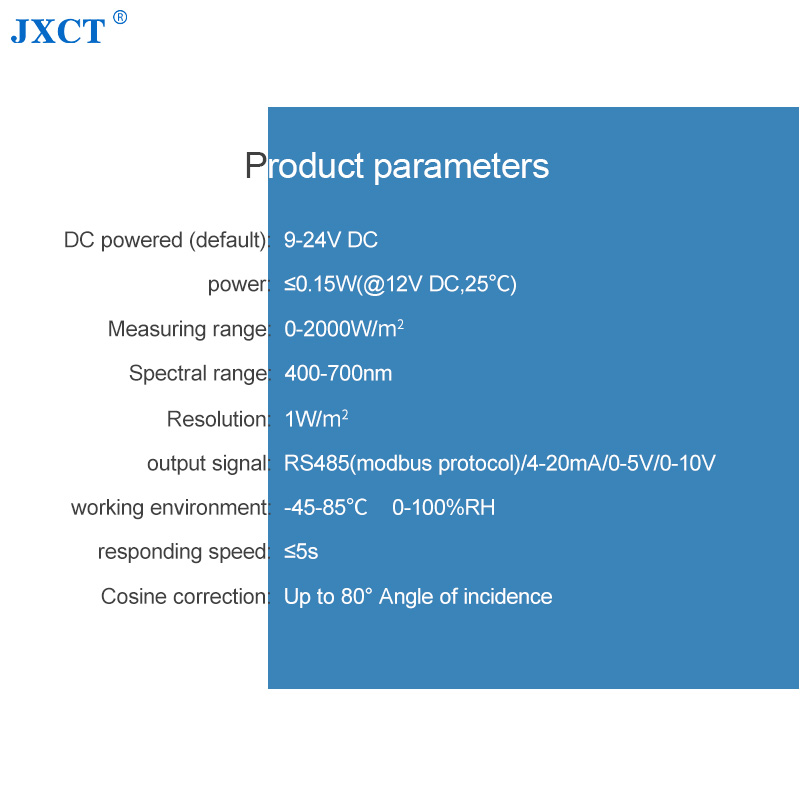

| PAR sensor parameter | |
| Power supply | 9-24V DC |
| Power | ≤0.15W |
| Range | 0-2000W/m2 |
| Spectral range | 400-700nm |
| Resolution | 1W/m2 |
| Output singal | RS485/4-20mA/0-5V/0-10V |
| Working environment | -45℃~85℃ 0~100%RH |
| Response time | ≤5s |
| Cosine correction | Up to 80° Angle of incidence |
