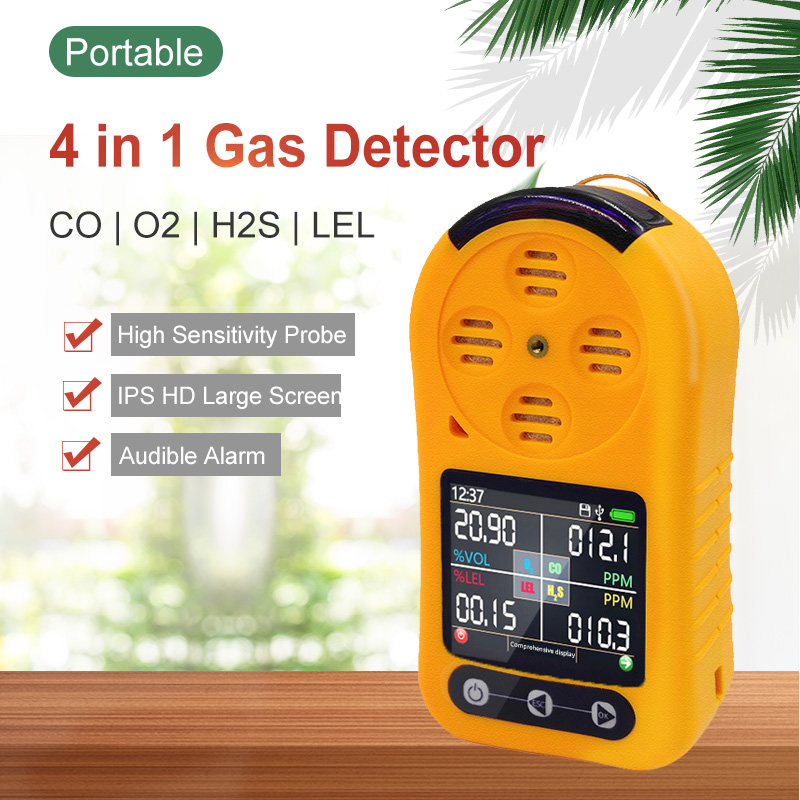

Portable 4 in 1 Gas Sensor multi CO LEL O2 H2S Gas Analyzer

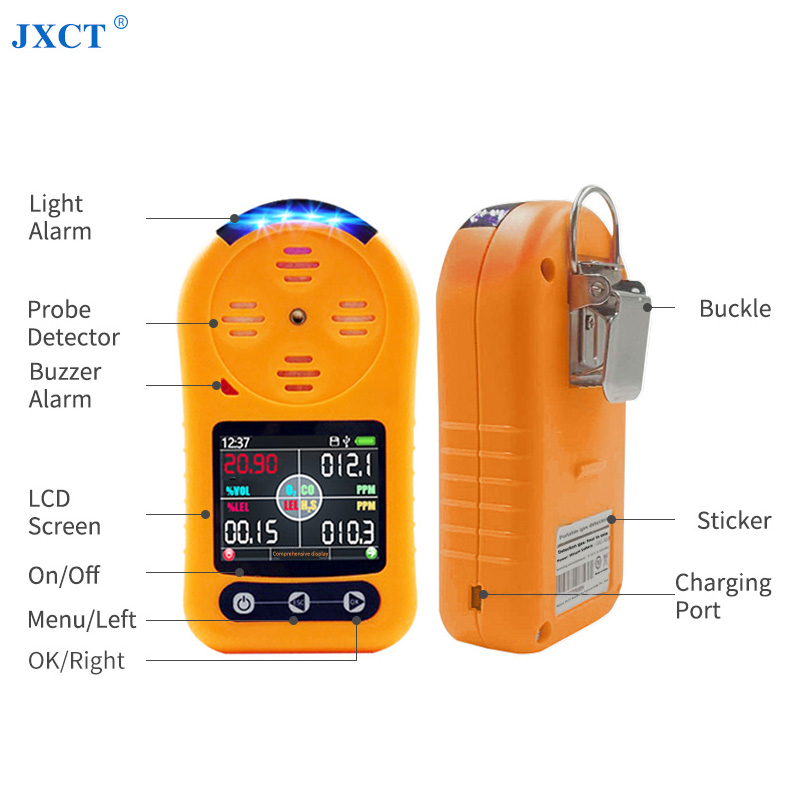

Our portable multi gas detector with a large LCD. It can monitor CO, H2S, O2 and combustible gas simultaneously. The instrument with audio/visual and vibratory indicators, rechargeable battery, and simple use. It is widely used in the area where explosion-proof is required or toxic gas leaks, like underground channels or mining industry, so as to protect the workers' life and avoid damage on the relevant equipments.

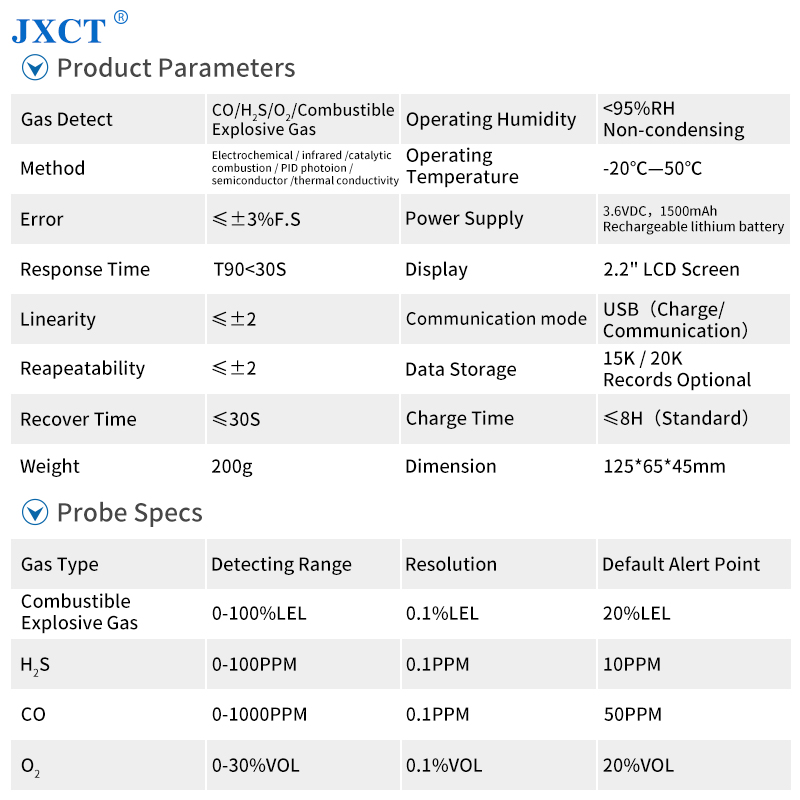

| Parameters | |
| Parameter | Technical index |
| Detection gas | Any combination of 1-4 gases |
| Measurement method | Electrochemical/infrared/catalytic combustion/PID photoion/semiconductor/thermal conductivity |
| Display error | ≤±3%F.S |
| Response time | T90<30S |
| Linearity | ≤±2 |
| Repeatability | ≤±2 |
| Rescovery time | ≤±30S |
| Working temperature | -20℃~50℃ |
| Working humidity | ≤95%RH non-condensing |
| Working power | 3.6V DC.2000mAh(standard) lithium battery |
| Display method | ≤2.2 inch LCD display |
| Communication method | USB(Charging and communication) |
| Data storage | ≤15,000pieces of data storage space as standard |
| Charging time | ≤8H(standard) |
| Size | 125*65*45mm |
| Weight | 200g |
| Four in one gas detector probe parameters | |||
| Gas type | Range | Resolution | Default alarm point |
| Flammable gas | 0-100%LEL | 0-1%LEL | 20%LEL |
| H2S | 0-100PPM | 0.1PPM | 10PPM |
| CO | 0-1000PPM | 0.1PPM | 50PPM |
| O2 | 0-30%VOL | 0.1%VOL | 18.9%VOL |
